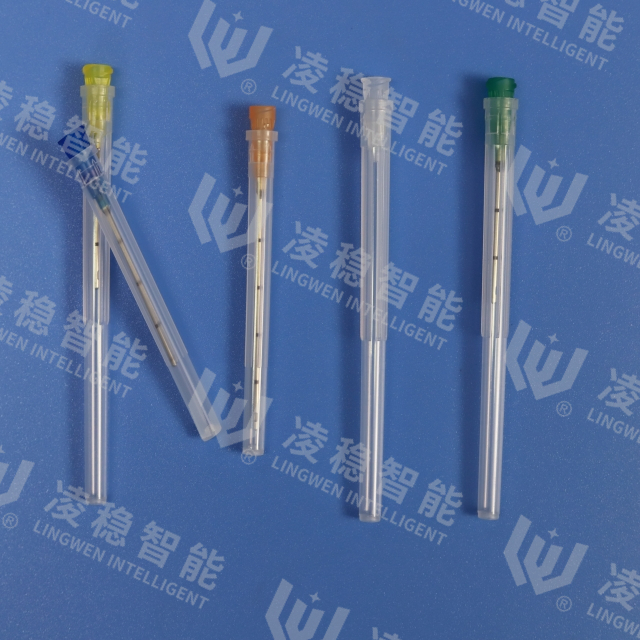

Automatic Assembly Machine for Blunt Needle
Machine features:
1、Use vision system to check needle tip quality and needle length
2.Blunt needle tip silicification and silicone oil cleaning station, silicone oil shall not splash to other areas;
3.The equipment can feed needle hub, adjust, set and control needle orientation, apply UV adhesive,
UV solidification by light,flow detection,feed protective cap automatically.
4. Add protective cover around to protect the UV light from direct exposure to prevent operator eyes.
5. Data statistics for failed products is divided into two parts, failed products on the left and right zones of the station statistics, failed products on the fixtures according to the number of the fixtures, to track and solve the problem;
Blunt needle machine blowing mechanism blows air from the bottom, and the gas flow is measured by the flowmeter, and the product flow is numerically reflected to tell the product's qualification.
